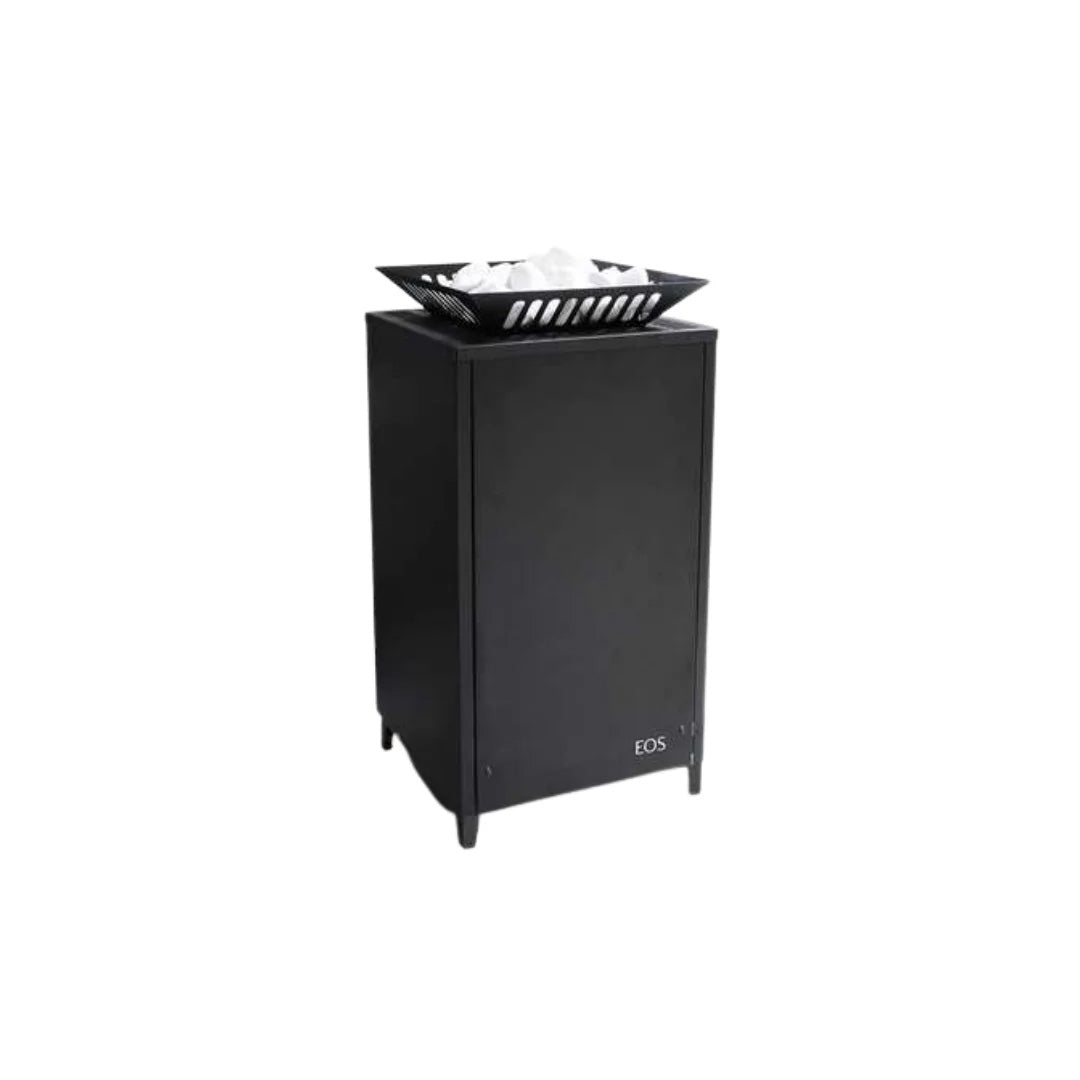

EOS Cubo Avantgarde 7.5kW Sauna Heater (247-384cf)
EOS Cubo Avantgarde 7.5kW Sauna Heater (247-384cf)
Couldn't load pickup availability
Description

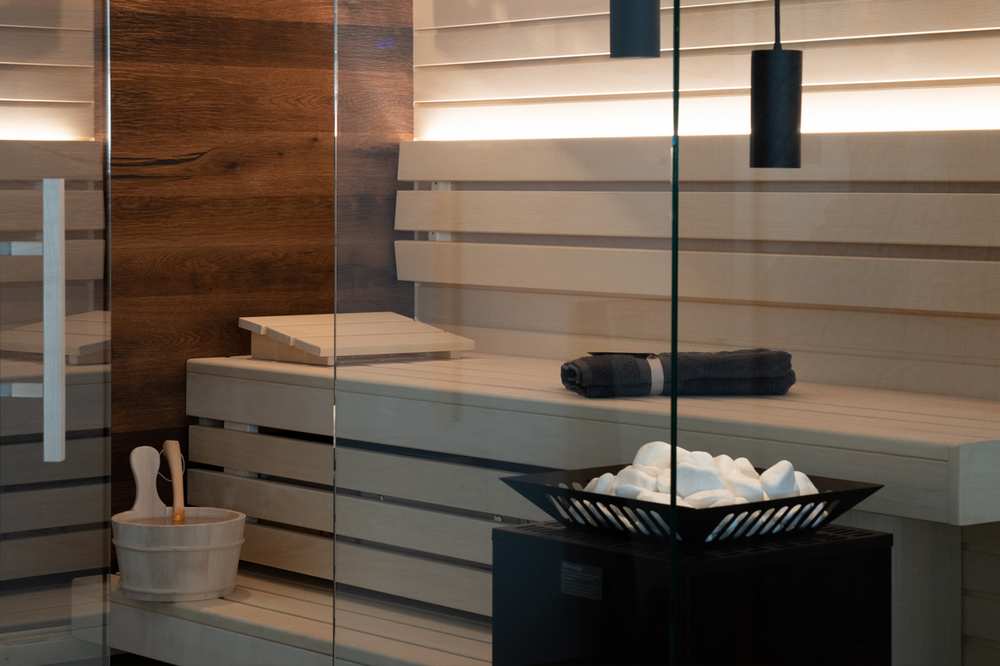

The EOS Cubo Avantgarde 7.5kW Sauna Heater is a premium floor-standing electric heater designed to elevate Finnish-style sauna experiences in modern homes and boutique spas. With its striking matte black finish on all sides and compact 1.3 x 1.3 ft footprint, it integrates seamlessly in front of glass panels or as a central design feature. This designer heater combines aesthetic appeal with efficient performance, delivering fast heat-up times and optimized steam output. The unique rock tray design separates the heating elements from the stones, promoting even heat distribution and extending the life of the heater. With a blend of traditional diabase and elegant white quartz stones, the EOS Cubo Avantgarde provides both beauty and performance in a compact, luxury package.
Features
- Output: Powerful 7.5kW Heater – Ideal for Sauna Rooms from 247 to 384 Cubic Feet
- Compact Floor-Standing Design – Only 1.3 x 1.3 ft Footprint (38.5 cm Depth)

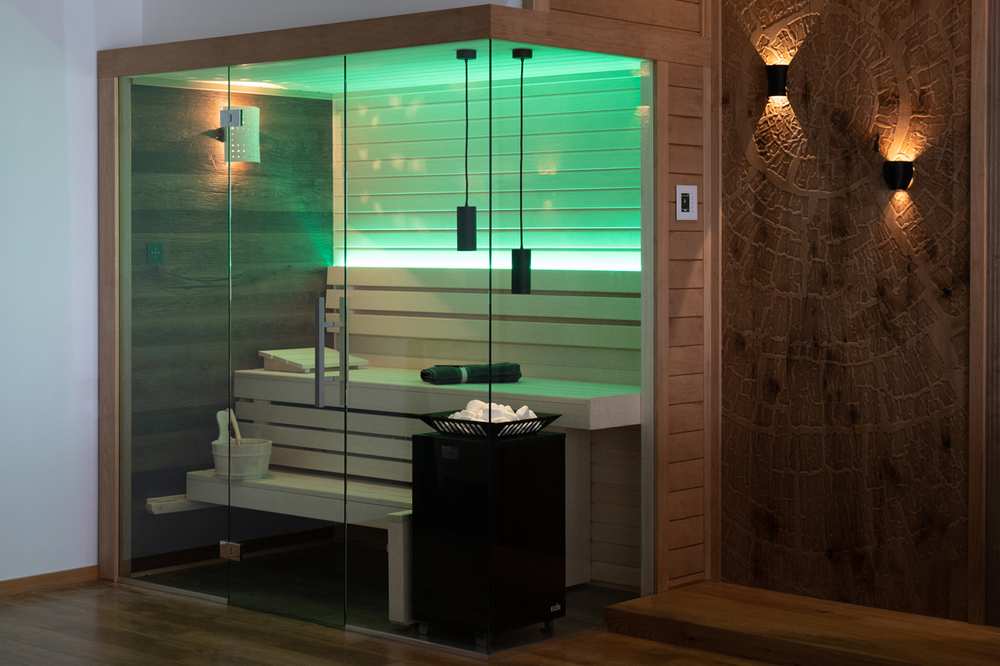

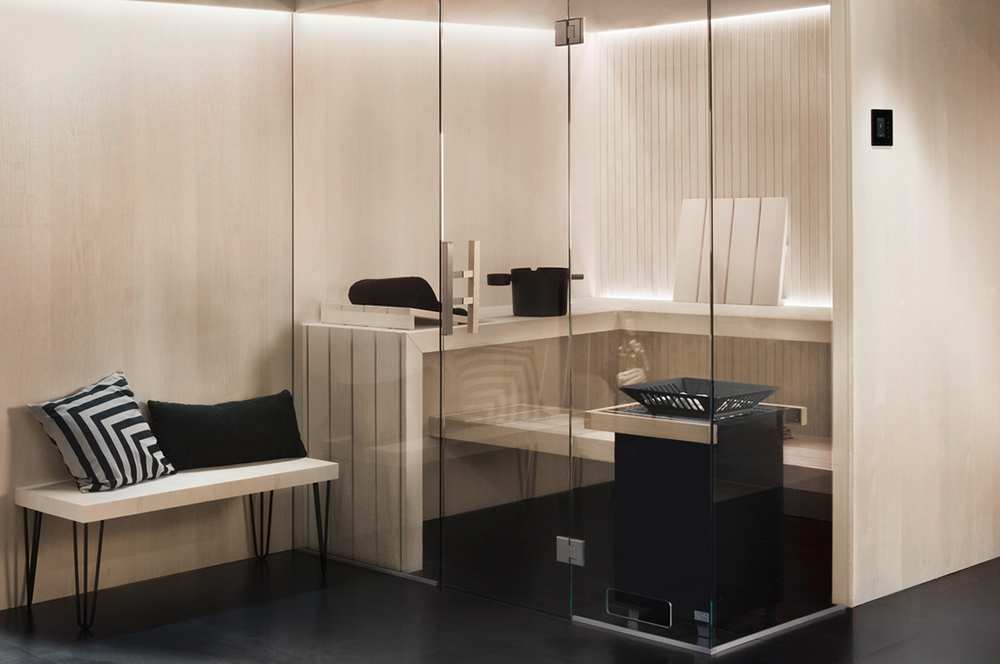

- Matte Black Finish on All Sides – Suits Glass-Front or Central Installations

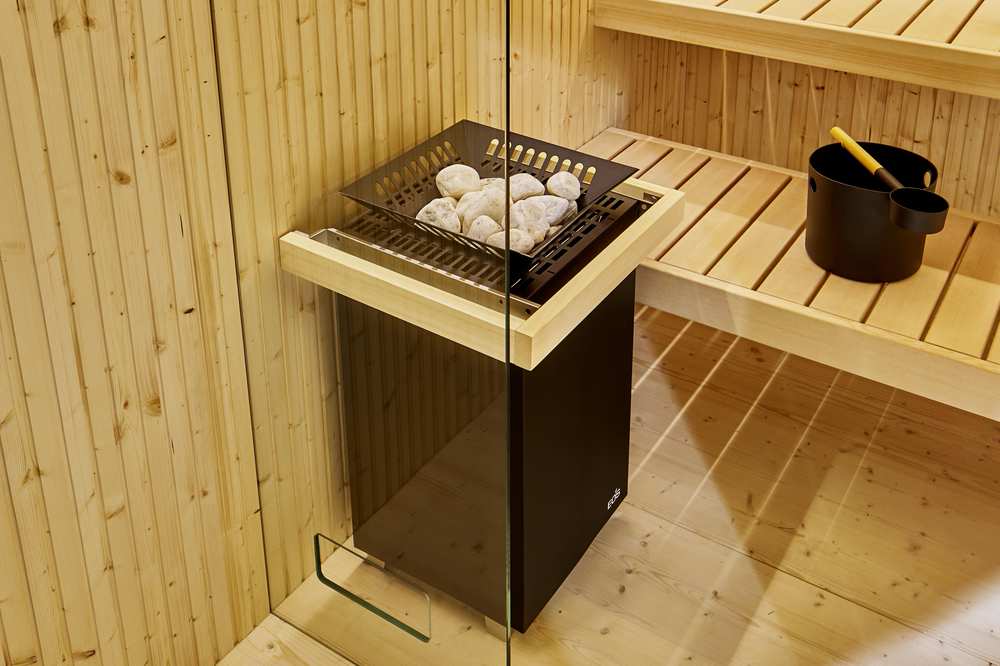

- Includes 77 lbs of Stones – 55 lbs Diabase + 22 lbs White Quartz
- Separated Heating Elements for Faster Warm-Up and Enhanced Longevity
- Optimized Convection System for Even Heat Distribution
- Durable German Construction with Service-Friendly Access
- Touch3 Control Panel Required (Sold Separately)
Technical
The EOS Cubo Avantgarde sauna heater features a high-performance 7.5kW output, making it suitable for mid-sized sauna rooms between 247 and 384 cubic feet. Its compact, symmetrical footprint allows for flexible placement, even in glass-enclosed or centrally designed saunas. The rock tray accommodates approximately 77 lbs of stones, including a top layer of elegant white quartz that enhances both visual appeal and steam production. The heater’s smart design separates the heating elements from the stones, reducing wear and promoting faster heat-up times. Constructed in Germany, the unit ensures reliability and ease of maintenance, and it requires the Touch3 control panel (sold separately) for operation.
Specifications
| Output | 7.5 kW |
|---|---|
| Heating Volume | 247–384 Cubic Feet (7–11 m³) |
| Stone Capacity | 77 lbs (55 lbs Diabase + 22 lbs White Quartz) |
| Weight (Without Stones) | 62 lbs (28 kg) |

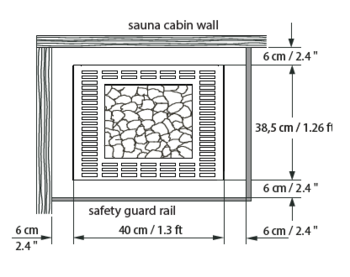

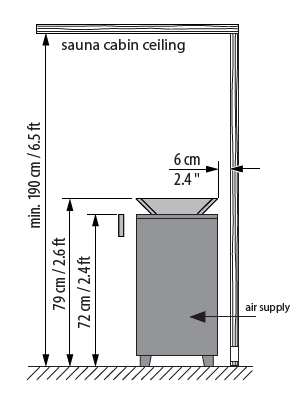

| Dimensions (H x W x D) | 28.3" x 15.7" x 15.1" (72 x 40 x 38.5 cm) |
| Electrical Connection | 240V, 2 Phase, 60 Hz |
| Minimum Air Inlet/Outlet | 1.2 x 0.2 ft (35 x 5 cm) |
| Design Finish | All-Side Matte Black Finish |
| Installation Type | Floor-Standing |
| Control Unit | Touch3 Control Panel (Required, Sold Separately) |
| Placement | Ideal for Glass-Front or Central Sauna Installations |
| Construction | Durable German Engineering |
| Steam Performance | Enhanced via Dual Stone Layers and Separated Heating Elements |
In the Box
- EOS Cubo Avantgarde 7.5kW Sauna Heater
- 55 lbs of Diabase Sauna Stones
- 22 lbs of White Quartz Stones

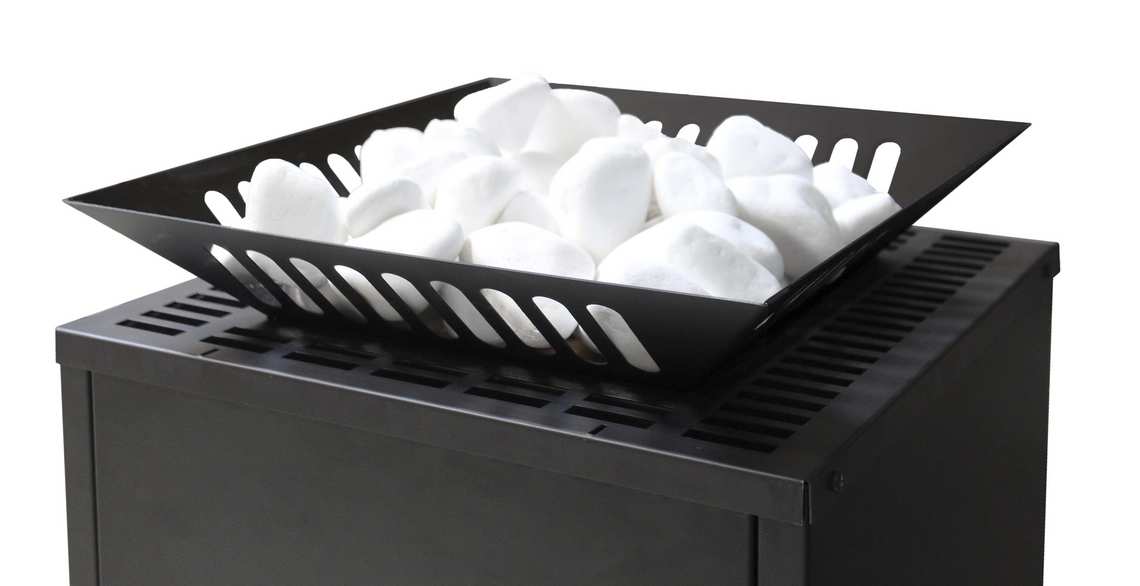

- Integrated Rock Tray with Separated Heating Elements
- Installation Manual
- Warranty Documentation
Cubo Avantgarde downloadable files:
